Abusing Levenshtein automaton for syncing trees

Dr. Vladimir I. Levenshtein

Interpretation by Jan @Novoj Novotný

Go through presentation with me

Problem definition

Compute minimal set of operations to apply on left tree to get to the structure of the right one.

Levenshtein distance

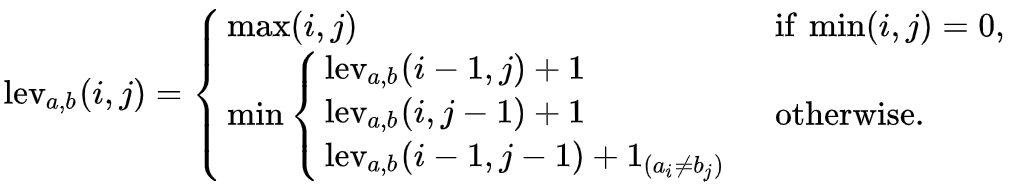

Levenshtein distance is a string metric for measuring the difference between two sequences. Informally, the Levenshtein distance between two words is the minimum number of single-character edits required to change one word into the other. It is named after the Soviet mathematician Vladimir Levenshtein, who considered this distance in 1965.

Allowed operations:

  • insert
  • delete
  • substitute

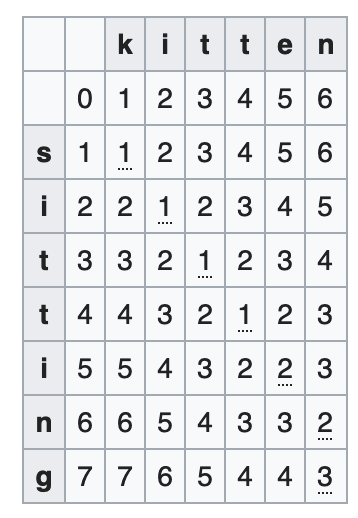

Levenshtein distance here is 3

Sequencing tree

A A( B C C( D D( E F )D )C G H )A I I( J )I

Applying Levenshtein automaton

Algorithm uses stack of operations instead of plain numbers. Imagine that under the number 3 is following stack of operations:


Reconstructing tree

  1. removing opening and closing elements and pointing all inner operations to correct parents
  2. replacing pair operations INSERT + DELETE targeting the same element to MOVE operation

And finally apply modification recipe applied on source tree.

Real life usage

Real life usage

Real life usage - the why

  • FG developers create page structure -> Git
  • Customer creates it's own modifications to structure on base of existing page structure
  • FG developers update the page structure -> Git
  • We need to merge original Customer modifications to new page structure pulled from Git
  • We create modification recipe skipping changes to nodes present in Git

Conflicts may still occur.

Thank you for your attention


Contact me @Novoj or novotnaci@gmail.com
